AKG P420 High Performance Dual-Capsule True Condenser Microphone

Description

For project studios and stage
The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

 AKG P420 High Performance Dual-Capsule True Condenser Microphone Features:

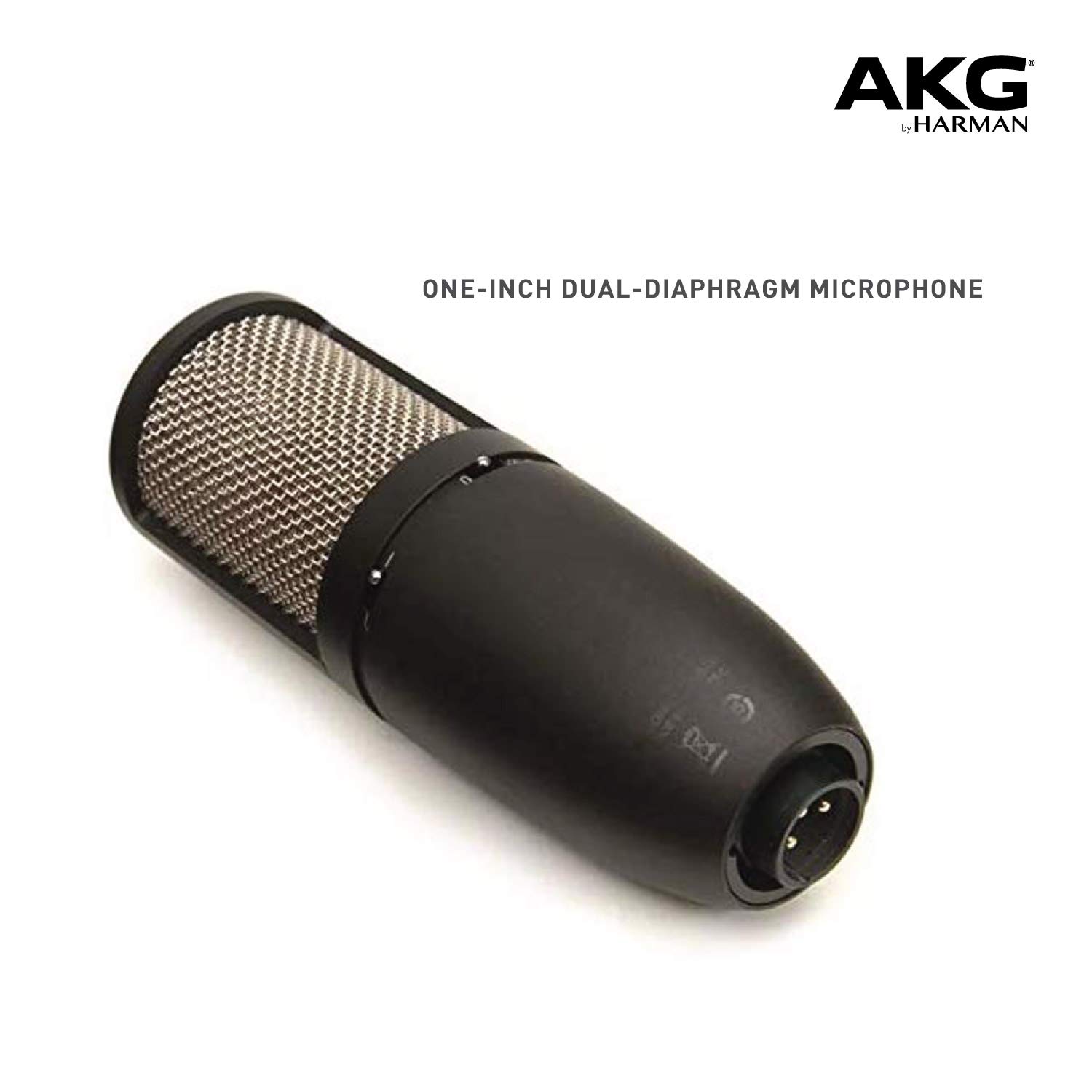

• One-inch dual-diaphragm microphone with three selectable polar patterns - For the perfect setting
• Low noise electronics - For high dynamic range
• Switchable attenuation pad - For high SPL applications up to 155 dB SPL

 AKG P420 High Performance Dual-Capsule True Condenser Microphone Specifications:

General:

• Audio frequency bandwidth: 20 to 20000 Hz
• Equivalent noise level: 15 dB-A
• Sensitivity: 28 mV/Pa
• Signal to Noise: 79 dB-A
• Preattenuation Pad: -20 dB
• Bass cut filter: 300 - 12 dB/octave Hz
• Electrical impedance: <= 200 Ohms
• Recommended load impedance: >= 1000 Ohms
• Polar Patterns: Cardioid, Omnidirectional, Figure of eight

Powering Interface:

• Voltage: 44 to 52 V
• Current: <= 3 mA

Audio Output:

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Dimensions / Weight:

• Length: 165 mm
• Diameter: 54 mm
• Net Weight: 530 g
